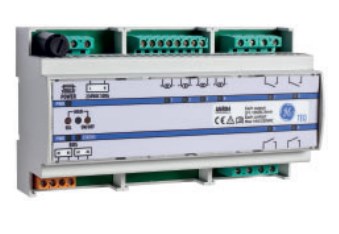

Dimmer modules
3 different dimmer modules are offered to suit a variety of dimming applications. The modules are controlled and programmable through the bus operating digitally with 8-bit precision. An optical separation between the inputs and outputs guarantees safe operation.
Multiple possibilities for dimmer control
1. One-button dimmer “ ” enables the reduction the number of control buttons.
2. Two-button dimmer: “ ” and “ ” button enhancing the operating comfort.
When a button is kept depressed, the transit time from zero to maximum is 5.1s. A short pulse (< 0.3s) will take the dimmer to zero or to the maximum value in 2.5s.
The maximum value can be adjusted from 20 to 100%. The lighting can also be dimmed automatically after a set time of 1s to 255min. Ideal for bedrooms… If the dimmers are controlled by a sequence the rise time and fall time can be adjusted independently between 0.3s and 20min. Each module has a unique serial number enabling programming anywhere and anytime.
After a loss of power the outputs return to their latest position.
