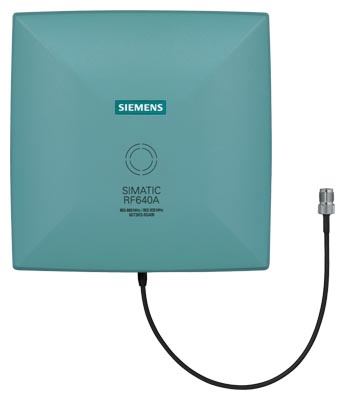

The SIMATIC RF640A/RF642A are rugged and compact antennas for industrial applications in production and logistics.
Both antennas can operate both in Europe and the USA (broadband) and with the UHF readers SIMATIC RF630R and RF670R.
Antenna | SIMATIC RF640A | SIMATIC RF642A |
|---|---|---|
Transmission frequency | 865 ... 928 MHz | |
Antenna gain | 4 dBi | 4.3 dBi |
Impedance (nominal) | 50 Ω | |
Polarization | Circular | Linear |
Approvals | ETSI EN 302208, CE, FCC, UL | |
Connection | 30 cm coaxial cable with reverse TNC coupling | |
Ambient temperature |
| |
| -25 … +75 °C | |
| -40 … +85 °C | |
Degree of protection according to EN 60529 | IP65 | |
Type of construction | ||
Dimensions L x W x H (mm) | 185 x 185 x 45 | |
Color | Pastel turquoise | |
Weight | 600 g | |
Material | Plastic (PA12) | |
Mounting | 4 x screws M4 | |

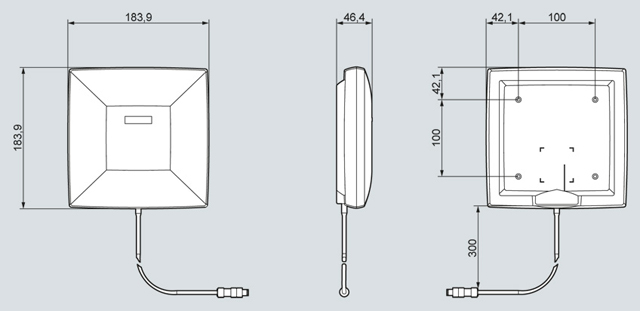

Dimensioned drawing available as CAD graphic (DXF format).
You can find additional information in the Internet at:
http://www.automation.siemens.com/bilddb/index.asp?objKey=G_FS10_XX_90481
| Код | Заказной номер | Описание | Вес (кг) | Заказать |
|---|---|---|---|---|
| 114703 | 6GT2812-0GA08 | simatic rf600 antenna rf640a; circular, broad band frequency range 865 to 928 mhz dimensions 180x180x45 mm (lxwxh); ip 65, -25 to +55 degrees/c; | 1 | Заказать |
| 114706 | 6GT2812-1GA08 | simatic rf600 antenna rf642a linear (broad band) frequency range 865 to 928 mhz dimensions 180x180x45 mm (lxwxh); ip 65, -25 to +55 degrees/c; | 1 | Заказать |
| 66647 | 6GT2815-0BH30 | simatic rf600 connect. cable antenna l3 preassembled, between slg and antenna, ip65 eu and usa-version length 3 m | 1 | Заказать |
| 114709 | 6GT2815-0BN10 | simatic rf600, кабель l10 для антенны, предварительно собранный, для подключения slg и антенны, ip65 версия для сша, длина 10 м | 1 | Заказать |
| 114710 | 6GT2815-0BN20 | simatic rf600, кабель l20 для антенны, предварительно собранный, для подключения slg и антенны, ip65 версия для сша, длина 20 м | 2 | Заказать |
| 114711 | 6GT2815-1BN10 | simatic rf600 connecting cable antenna l10; low damping (-2 dbm); preassembled; ip65; pe, cmr/mpr, length: 10 m | 1 | Заказать |
| 114718 | 6GT2890-0AA00 | simatic rf600 гибкий трехпутевой монтажный комплект для антенны simatic rf 660-a | 3 | Заказать |
