Сетевые кабели производства Siemens

Order No.

6XV1 830-5HH10

6XV1 830-5GH10

Product type designation

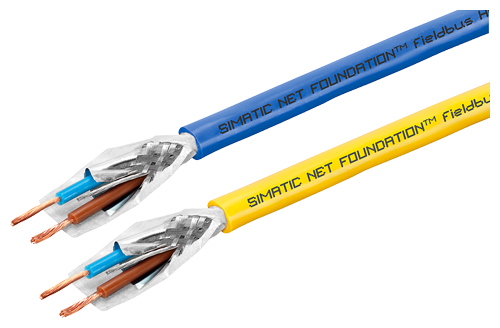

Foundation Fieldbus cable

Foundation Fieldbus Cable

Product description

Bus cable (2-core), sold by the meter, in bulk

Bus cable (2-core), sold by the meter, in bulk

Suitability for application

Use for fieldbus systems in accordance with IEC 61158-2 (e.g. Foundation Fieldbus), suitable for non-hazardous applications

Use for fieldbus systems in accordance with IEC 61158-2 (e.g. Foundation Fieldbus), suitable for hazardous applications

Cable designation

2X(ST)CY 1X2X1.1/2.85-100 LI GE FR OE

2X(ST)CY 1X2X1.1/2.85-100 LI BL FR OE

Cable length

-

-

Electrical specifications

Attenuation factor per length

• At 9.6 kHz maximum

-

-

• At 38.4 kHz maximum

0.003 dB/m

0.003 dB/m

• At 4 MHz maximum

-

-

• At 16 MHz maximum

-

-

Characteristic impedance

• Rated value

100 Ω

100 Ω

• At 9.6 kHz

-

-

• At 38.4 kHz

100 Ω

100 Ω

• at 3 MHz ... 20 MHz

-

-

Relative symmetrical tolerance

• of characteristic impedance at 9.6 kHz

-

-

• of characteristic impedance at 38.4 kHz

20 %

20 %

• of characteristic impedance at 3 MHz to 20 MHz

-

-

Max. loop resistance per length

46 Ω/km

46 Ω/km

Max. shield resistance per length

10 Ω/km

10 Ω/km

Capacitance per length at 1 kHz

65 pF/m

65 pF/m

Operating voltage, rms value

300 V

300 V

Mechanical data

Number of electrical cores

2

2

Design of shield

Overlapping aluminum-clad foil, sheathed in a braided screen of tin-plated copper wires with shield wire

Overlapping aluminum-clad foil, sheathed in a braided screen of tin-plated copper wires with shield wire

Design of electrical connection FastConnect

No

No

Outer diameter

• of inner conductor

1.17 mm

1.17 mm

• of core insulation

2.85 mm

2.85 mm

• of inner sheath of cable

6.4 mm

6.4 mm

• of cable sheath

8.5 mm

8.5 mm

Symmetrical tolerance of outer diameter of cable sheath

0.3 mm

0.3 mm

Outer diameter of cable sheath - Note

-

-

Material

• of core insulation

PE

PE

• of inner sheath of cable

-

-

• of the cable sheath

PVC

PVC

• Note

-

-

Color

• of core insulation of data cores

blue / brown

blue / brown

• of the cable sheath

Yellow

Blue

Bending radius

• with single bending

34 mm

34 mm

• with repeated bending

68 mm

68 mm

• with continuous bending

-

-

Number of bending cycles

-

-

• Note

-

-

Number of torsion cycles with torsion by ± 180° on 1 m cable length

-

-

Maximum tensile load

100 N

100 N

Weight per length

98 kg/km

98 kg/km

Permitted ambient conditions

Ambient temperature

• During operation

-40 … +105 °C

-40 … +105 °C

• During storage

-40 … +105 °C

-40 … +105 °C

• During transport

-40 … +105 °C

-40 … +105 °C

• During mounting

-40 … +105 °C

-40 … +105 °C

Ambient conditions for operation

Transmission rate of the cable: 31.25 kbit/s

Transmission rate of the cable: 31.25 kbit/s

IP degree of protection

-

-

Behavior in fire

Flame-retardant in accordance with IEC 60332-1-2

Flame-retardant in accordance with IEC 60332-1-2

Chemical resistance

• against mineral oil

Limited resistance

Limited resistance

• against grease

Limited resistance

Limited resistance

• against water

-

-

Radiological resistance against UV radiation

Resistant

Resistant

Product properties, functions, componentsGeneral

Product property

• Halogen-free

No

No

• Silicon-free

Yes

Yes

Cable length

• at 12 Mbit/s maximum

-

-

• at 1.5 Mbit/s maximum

-

-

Standards, specifications, approvals

UL listing at 300 V rating

Yes: CMG / PLTC# / Sun Res

Yes: CMG / PLTC / Sun Res

UL style at 600 V rating

No

No

Certificate of suitability

-

-

• RoHS compliance

Yes

Yes

Marine classification society

• Germanischer Lloyd (GL)

No

No

• Llyods Register of Shipping (LRS)

No

No
