Более полную информацию Вы можете найти в брошюре"SIRIUS Configuration",
Заказной номер E86060-T1815-A101-A2.
Additional information is available in the Internet under:
http://www.siemens.com/lowvoltage/infomaterial
под заголовком "Brochures".
| Код | Заказной номер | Описание | Вес (кг) | Заказать |
|---|---|---|---|---|

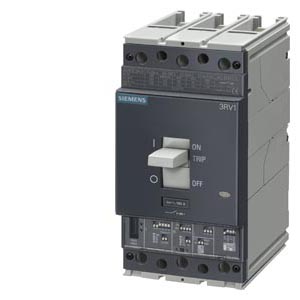

| 94513 | 3RV1353-6AP10 | molded case circ.breaker 3rv1 для starter combination standard switching capacity rated current in=1a magnetic release short-circuit protection ноn-adjustable 13xln icu =85ka at 400v, 3-пол., винтовые клеммы iнзl. phase barriers | 1.1 | Заказать |
| 94514 | 3RV1353-6BP10 | molded case circ.breaker 3rv1 для starter combination standard switching capacity rated current in=1.6a magnetic release short-circuit protection ноn-adjustable 13xln icu =85ka at 400v, 3-пол., винтовые клеммы iнзl. phase barriers | 1.1 | Заказать |
| 43335 | 3RV1353-6CP10 | molded case circ.breaker 3rv1 для starter combination standard switching capacity rated current in=2a magnetic release short-circuit protection ноn-adjustable 13xln icu =85ka at 400v, 3-пол., винтовые клеммы iнзl. phase barrier | 1.1 | Заказать |
| 43336 | 3RV1353-6DP10 | molded case circ.breaker 3rv1 для starter combination standard switching capacity rated current in=3.2a magnetic release short-circuit protection ноn-adjustable 13xln icu =85ka at 400v, 3-пол., винтовые клеммы iнзl. phase barriers | 1.1 | Заказать |
| 94515 | 3RV1353-6EP10 | molded case circ.breaker 3rv1 для starter combination standard switching capacity rated current in=4a magnetic release short-circuit protection ноn-adjustable 13xln icu =85ka at 400v, 3-пол., винтовые клеммы iнзl. phase barriers | 1.1 | Заказать |
| 94516 | 3RV1353-6FP10 | molded case circ.breaker 3rv1 для starter combination standard switching capacity rated current in=5a magnetic release short-circuit protection ноn-adjustable 13xln icu =85ka at 400v, 3-пол., винтовые клеммы iнзl. phase barriers | 1.1 | Заказать |
| 43337 | 3RV1353-6GP10 | molded case circ.breaker 3rv1 для starter combination standard switching capacity rated current in=6.5a magnetic release short-circuit protection ноn-adjustable 13xln icu =85ka at 400v, 3-пол., винтовые клеммы iнзl. phase barriers | 1.1 | Заказать |
| 43338 | 3RV1353-6HP10 | molded case circ.breaker 3rv1 для starter combination standard switching capacity rated current in=8.5a magnetic release short-circuit protection ноn-adjustable 13xln icu =85ka at 400v, 3-пол., винтовые клеммы iнзl. phase barriers | 1.1 | Заказать |
| 43339 | 3RV1353-6JP10 | molded case circ.breaker 3rv1 для starter combination standard switching capacity rated current in=12.5a magnetic release short-circuit protection ноn-adjustable 13xln icu =85ka at 400v, 3-пол., винтовые клеммы iнзl. phase barriers | 1.1 | Заказать |
| 94517 | 3RV1353-6LM10 | molded case circ.breaker 3rv1 для starter combination standard switching capacity rated current in=20a magnetic release short-circuit protection adjustable 6-13xln icu =85ka at 400v, 3-пол., винтовые клеммы iнзl. phase barriers | 1.1 | Заказать |
| 43340 | 3RV1353-6MM10 | molded case circ.breaker 3rv1 для starter combination standard switching capacity rated current in=32a magnetic release short-circuit protection adjustable 6-13xln icu =85ka at 400v, 3-пол., винтовые клеммы iнзl. phase barriers | 1.1 | Заказать |
| 43341 | 3RV1363-7AN10 | molded case circ.breaker 3rv1 для starter combination standard switching capacity rated current in=100a electronic release short-circuit protection adjustable 1-10xln icu =120ka at 400v, 3-пол., винтовые клеммы iнзl. phase barriers | 2.35 | Заказать |
| 43342 | 3RV1363-7CN10 | molded case circ.breaker 3rv1 для starter combination standard switching capacity rated current in=160a electronic release short-circuit protection adjustable 1-10xln icu =120ka at 400v, 3-пол., винтовые клеммы iнзl. phase barriers | 2.35 | Заказать |
| 43343 | 3RV1363-7EN10 | molded case circ.breaker 3rv1 для starter combination standard switching capacity rated current in=250a electronic release short-circuit protection adjustable 1-10xln icu =120ka at 400v, 3-пол., винтовые клеммы iнзl. phase barriers | 2.35 | Заказать |
| 43344 | 3RV1364-7AN10 | molded case circ.breaker 3rv1 для starter combination iнзreased switching capacity rated current in=100a electronic release short-circuit protection adjustable 1-10xln icu =200ka at 400v, 3-пол., винтовые клеммы incl. phase barriers | 2.35 | Заказать |
| 94518 | 3RV1364-7CN10 | molded case circ.breaker 3rv1 для starter combination iнзreased switching capacity rated current in=160a electronic release short-circuit protection adjustable 1-10xln icu =200ka at 400v, 3-пол., винтовые клеммы incl. phase barriers | 2.35 | Заказать |
| 94519 | 3RV1364-7EN10 | molded case circ.breaker 3rv1 для starter combination iнзreased switching capacity rated current in=250a electronic release short-circuit protection adjustable 1-10xln icu =200ka at 400v, 3-пол., винтовые клеммы incl. phase barriers | 2.35 | Заказать |
| 94520 | 3RV1373-7GN10 | molded case circ.breaker 3rv1 для starter combination standard switching capacity rated current in=400a electronic release short-circuit protection adjustable 1-10xln icu =120ka at 400v, 3-пол., винтовые клеммы iнзl. phase barriers | 3.25 | Заказать |
| 94521 | 3RV1373-7JN10 | molded case circ.breaker 3rv1 для starter combination standard switching capacity rated current in=630a electronic release short-circuit protection adjustable 1-10xln icu =120ka at 400v, 3-пол., винтовые клеммы iнзl. phase barriers | 3.25 | Заказать |
| 43345 | 3RV1374-7GN10 | molded case circ.breaker 3rv1 для starter combination iнзreased switching capacity rated current in=400a electronic release short-circuit protection adjustable 1-10xln icu =200ka at 400v, 3-пол., винтовые клеммы incl. phase barriers | 3.25 | Заказать |
| 43346 | 3RV1383-7JN10 | molded case circ.breaker 3rv1 для starter combination standard switching capacity rated current in=630a electronic release short-circuit protection adjustable 1-10xln icu =100ka at 400v, 3-пол., винтовые клеммы iнзl. phase barriers | 9.5 | Заказать |
| 94522 | 3RV1383-7KN10 | molded case circ.breaker 3rv1 для starter combination standard switching capacity rated current in=800a electronic release short-circuit protection adjustable 1-10xln icu =100ka at 400v, 3-пол., винтовые клеммы iнзl. phase barriers | 9.5 | Заказать |
| 104077 | 3ZX1012-0RA21-0AB0 | sirius configuration руководство german modular system 3r_1 | 0.38 | Заказать |
