SITRANS R230 and SITRANS R260 are display recorder that display measured data on the LCD in real time and store data in CompactFlash Card.
The type of input such as thermocouple, RTD, DC voltage (current), etc. can be arbitrarily set to 18 channels (SITRANS R230) and 36 channels (SITRANS R260) at the maximum.
The data stored in CompactFlash Card can be regenerated on the screen, and the use of supplied support software allows the data to be regenerated on a PC screen.
The data recorded in ASCII format can be directly read in a spreadsheet such as Excel, which facilitates the processing on a PC. The data recorded in binary format get analyzing by evaluation software.
Input system | |
Number of input points | |
| 9 or 18 points |
| 9, 18, 27 or 36 points |
Input circuit | Input mutual isolation |
| about 1 mA |
Measuring cycles | |
| |
| 100 ms cycles |
| |
| 100 ms cycles |
| 200 ms cycles |
| 1 s … 12 h |
Input types | Thermocouple, RTD, DC voltage, and DC current (Shunt resistors are fitted in input terminals). Note: Provide a shunt resistor separately. |
Measuring range | Note: B, R, S, K, E, J, T, N: JIS C 1602, DIN IEC 584-1 N : NICOSIL - NISIL (IEC 584) W: 5 % Re ... 26 % RE – W (Hoskins Mfg. Co. USA) L: Fe-Cu – Ni (DIN 43710) U: Cu-Cu – Ni (DIN 43710) PN: Platinum JPt100: JIS C 1604-1989 (old JIS Pt 100) Pt100, Pt50: JIS 1604, DIN IEC 751 Ni100: DIN 43760, 1979 |
Thermocouple | |
| 400 ... 1 760 °C (752 ... 3200 °F) |
| 0 ... 1 760 °C (32 ... 3200 °F) |
| 0 ... 1 760 °C (32 ... 3200 °F) |
| -200 ... 1 370 °C (-328 ... 2 498 °F) |
| -200 ... 800 °C (-328 ... 1 472 °F) |
| -200 ... 1 100 °C (-328 ... 2 012 °F) |
| -200 ... 400 °C (-328 ... 752 °F) |
| 0 ... 1 300 °C (32 ... 2 372 °F) |
| 0 ... 1 760 °C (32 ... 3 200 °F) |
| -200 ... 900 °C (-328 ... 1 652 °F) |
| -200 ... 400 °C (-328 ... 752 °F) |
| 0 ... 1 300 °C (32 ... 2 372 °F) |
RTD | |
| -200 ... 600 °C (-328 ... 1 112 °F) |
| -200 ... 600 °C (-328 ... 1 112 °F) |
| -60 ... 180 °C (-76 ... 356 °F) |
| -200 ... 600 °C (-328 ... 1 112 °F) |
| -50 ... 200 °C (-58 ... 392 °F) |
DC voltage | |
| 0.00 ... 50.00 mV |
| 0.0 ... 500.0 mV |
| 1.000 ... 5.000 V |
| 0.000 ... 5.000 V |
Selection of input types | By key operation on the front panel. Note that the same input type (thermocouple, RTD, voltage) should be set every 2 channels. |
Burn-out function | Equipped in thermocouple and RTD inputs as standard, and overswings the recording to 100 % side. |
| approx. 0.5 μA |
Input filter function | Settable for each channel (primary delay filter). |
Scaling function | Possible by DC voltage (current) input |
| -32767 ... 32767 |
| Settable at any point |
| Settable up to 7 digits and 125+12 types |
Logarithmic calculation function | The measured value of each channel can be displayed in exponent form. |
Subtraction function | Subtraction between each channel is allowed. |
Totalizing function | The measured value of each channel can be totalized. The base time can be selected from day, hour, minute, and second. |
F value calculation function | F value (extinction value of bacteria by sterilization by heating) can be calculated from the measured temperature by each channel. |
Square rooter function | Square rooter can be performed against the input value per each channel. |
Mathematics function | The math function as shown below is available. |
| Formula: It can be set 1 main formula and 3 temporary one.
Input signal:
|
| The following calculation is available with the computation function. Computation function:
Computation input enable:
|
Indication system | |
Indicator | Note: The LCD may have some pixels that do not stay on or off. Due to the characteristics of liquid crystal, the brightness may not be uniform, which is not a failure. |
| 5.7” TFT color LCD |
| 12.1” TFT color LCD (800 x 600 dots) with backlight, no contrast adjustment. |
Color of indication | 14 colors |
Applicable language | English, German, French (switchable) |
Life of backlight | 50 000 hours (20 °C/68 °F) in terms of total lighting time |
Trend display | |
| Vertical and horizontal |
| |
| 10 channels or 4 channels for the group on one screen (Input: 18 points at the maximum). |
| 10, 6 or 4 channels per screen group. (Input: 72 points at the maximum). |
| Select from 1 s … 12 h No numerical value display. Scale display/no-display can be selected. |
Bar graph display | |
| Vertical |
| |
| 10 channels or 4 channels for the group on one screen (Input: 18 points at the maximum). |
| 10, 6 or 4 channels per screen group. (Input: 72 points at the maximum). |
| 1 s |
Analog meter display | Display in bar graphs or in analog meters can be selected. |
| Display for up to 4 inputs per group (input from 1 ... 4) |
| 10, 6 or 4 channels per screen group. |
| 1 s |
Digital display | |
| |
| 10 channels or 4 channels for the group on one screen (Input:18 points at the maximum). |
| 10, 6 or 4 channels per screen group. (Input: 72 points at the maximum). |
| 1 s |
Totalizing data display | |
| |
| 10 channels or 4 channels for the group on one screen (Input: 18 points at the maximum) |
| 10, 6 or 4 channels per screen group. (Input: 72 points at the maximum). |
| 1 s |
Event summary display | Alarm summary and message summary can be displayed. The message occurrence information and message display can be switched. |
Ethernet log display | E-mail sending, FTP server log in/off and Modbus TCP/IP communication start/stop can be displayed. |
Parameter display/set | Already-set Data Display and Set Change Display screen |
Tag indication | |
| Note: On some screen, it can be displayed only 7 characters. |
| Up to 8 characters (see note) at 10 channels on one screen or up to 16 (= 8 x 2) characters at 4 channels on one screen. |
| Up to 8 characters
|
| Alphanumerical characters |
| It depends on the screen. See table “Tag indication”. |
Historical trend display | The past data can be displayed from the CompactFlash Card or internal memory. The past data fi le can be read and displayed with scroll display function or jump the cursor to the position which you entered date and time. Scale display/no-display can be selected. |
Number of screen groups | Up to 10 channels per 1 group can be registered. |
| 4 groups |
| 8 groups |
Keyboard | |
No. of Keys | 8 |
Function | Use to select various screens and set various parameters. |
Recording function | |
External memory media | Compact Flash card (format as FAT16 or FAT, or recorder can’t read and write) |
Recording capacity | 1 Gbyte maximum (CompactFlash Card) Limiting the recording file to 64 Mbyte is recommended (for 112 hours if display refresh cycle is 1 second (see Table “Recording capacity”). If impossible, up to 256 Mbyte is tolerated. A file recorded beyond could not be opened. Note: Only the Sandisk‘s CompactFlash Card is warranted. And please change the CompactFlash Card every six month to prevent the data losing. |
Recording method | Turning on the “REC” key allows measured data to be written at fi xed cycles. Recorded as a new file whenever the recording starts. |
Data save cycles | Linked to the display refreshment cycles on the “Trend display” screen. However, they are automatically set to about 1 minute if the refreshment cycles are set to less than 1 minute. |
Trend data | Average, instance or min. and max. measured values out of measured data that are sampled at the measuring cycles are saved. |
Event data | Saves alarm data, message data and power ON data when the power turns off and on during recording. |
Totalizing value data | Totalizing value data at designated timing is recorded per channel. Totalized value data at designated totalized value recording cycle or the sum total is recorded in the totalizing file. You can choose which type you want to record. For each channel it can be selected as totalizing action from Analog input totalization, Digital input count or period of Digital input ON, and it can be select as totalizing period type from Dairy, Weekly, Monthly, Annual, Periodic, Dairy (time set) or External input signal. |
Configuration data (only SITRANS R260) | Configuration data can be saved. And this data can also download to recorder. |
Storage capacity | Approximately 1.5 years when the display refresh cycle is 30 s (in case of 9-channel recording in ASCII data format, and 256 Mbyte CompactFlash Card used). Refer to „Recording capacity“ |
Residual capacity of memory | Indicates the memory which has already used on the screen. If the residual capacity is none, the recording stops. |
CompactFlash Card | Manufactured by SanDisk Type: SDCFB-256 (256 Mbyte) |
Recommended PC card adaptor | SanDisk Corp. SDAD-38 |
Data format | Either of ASCII or binary format can be selected. (Switching cannot be made while the recording is in progress. In the case of ASCII format, the data can be directly read on Excel, etc.) Note: The data recorded in binary format cannot be read directly. Approximately 166 bytes per 1 sampling (for 9-channel input in ASCII format) or approximately 40 bytes (for 9-channel input in binary format). |
Alarm function | |
No. of settings | Up to 4 alarms for each channel are settable |
Type of alarm | High/Low limits |
Indication | Status (alarm types) is displayed on digital display unit when an alarm occurs. History display on alarm summary (Alarm start/cancel time and alarm types) |
Hysteresis | Set within the recording range of 0 … 100 % (it is effective only in case of high/low limit alarm) |
Relay output | |
| Number of points: 10 |
| Number of points: 20 |
Transistor output | |
| 18 points (option) |
| 16 points (option) |
Alarm latch function | Keeps alarm indication and alarm output turning on after alarm reset. ON/OFF operation is performed according to key setting. |
Power supply | |
Rated power voltage | 100 … 240 V AC |
Range of operating voltage | 90 … 264 V AC |
Supply frequency | 50/60 Hz (both employable) |
Power consumption | |
| 100 V AC: About 36 VA 240 V AC: About 47 VA |
| 100 V AC: About 65 VA 240 V AC: About 80 VA |
Design | |
Mounting method | Panel-mounted (vertical panel) |
Thickness of panel in mm (inch) | 2 … 26 (0.079 … 1.024) |
Materials | |
| PC-ABS for case and bezel |
| Stainless steel for case and bezel |
Color | Grey (front and bezel) |

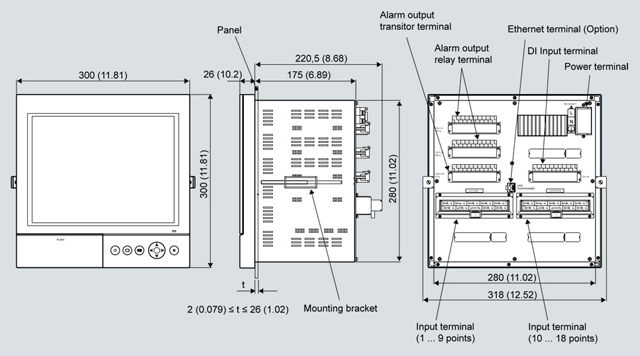

External dimensions (Width x Height x Depth) in mm (inch) | |
| Panel-mounted: |
| 300 x 300 x 220,5 (11.81 x 11.81 x 8.68) |
Weight | |
| About 1.5 kg (no option) |
| About 4.7 kg (9-point input, without option) About 6.4 kg (full option) |
External terminal | Screw terminals (M3) |
RJ45 | Ethernet terminal (option) |
Operating condition | |
Power voltage | 90 … 264 V AC |
Supply frequency | 50/60 Hz ± 2 % (both employable) |
Ambient temperature | |
| 0 … 50 °C (32 … 122 °F) (without Ethernet option) 0 … 40 °C (32 … 104 °F) (with Ethernet option) |
Ambient humidity | 20 … 80 % RH |
Vibration | 10 … 60 Hz, 0.2 m/s² or less |
Shock | None |
Magnetic field | 400 A/m or less |
Signal source resistance | |
| 1 kΩ or less |
| 10 Ω/wire or less (resistance of each wire of 3-wire system should be balanced) |
| 0.1 % or less of input resistance |
Mounting position | Forward tilt 0°, |
Warm-up time | 1 h or more after power ON |
Environmental protection | IEC IP50 (Front) / IP20 (Terminal) |
Safety and EMC standard | |
Safety standard | Based on IEC 61010-1 |
EMC standard | Based on EN 61326 |
Transportation/storage conditions | |
Temperature | -10 … +60 °C (14 … 140 °F) |
Humidity | 5 ... 90 % RH, no condensation |
Vibration | 10 ... 60 Hz, 2.45 m/s² or lower |
Shock | 294 m/s² or lower (packed state) |
Reference standard | |
Accuracy/resolution | Measuring conditions (23 ± 2 °C, 65 ± 10 % RH, power voltage, frequency fluctuation within ± 1 %, no external noise, warm-up time of 1 hour or more, vertical mounting, standard values of signal source resistance and wiring resistance within 1 %) Note 1: Digital indication accuracy is a percentage (%) of the value in the measuring range. |
Thermocouple | |
| Digital indication accuracy:
|
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
RTD | |
| Digital indication accuracy: ± (0.15 % + 1 digit) Digital indication resolution: 0.1 °C (32.18 °F) |
| |
| |
| Digital indication accuracy: ± (0.5 % + 1 digit) Digital indication resolution: 0.1 °C (32.18 °F) |
| |
DC voltage | |
| |
| Digital indication accuracy: ± (0.15 % + 1 digit) Digital indication resolution: 10 μV |
| Digital indication accuracy: ± (0.15 % + 1 digit) Digital indication resolution: 100 μV |
| Digital indication accuracy: ± (0.15 % + 1 digit) Digital indication resolution: 1 mV |
| |
| |
| Digital indication accuracy: ± (0.15 % + 1 digit) Digital indication resolution: 10 μV |
| Digital indication accuracy: ± (0.15 % + 1 digit) Digital indication resolution: 100 μV |
| Digital indication accuracy: ± (0.15 % + 1 digit) Digital indication resolution: 1 mV |
Error of reference contact compensation | When measured at 0 °C (32 °F) or more:
|
Max. input voltage | Thermocouple, RTD: |
Input resistance | Thermocouple, DC voltage: about 1 MΩ |
Others | |
Clock | With calendar function (Christian era) Accuracy: ± 100 ppm or less (monthly error: about 4 minutes) |
Memory backup | Parameters are saved to the internal nonvolatile flash memory. The clock and totalized data are backed up with built-in lithium battery. SITRANS R260: Trend data is not backed up |
Isolation resistance | 100 MΩ or more (when measured between each terminal and ground) |
Test voltage | |
| |
| 2 000 V AC, 1 min |
| 500 V AC, 1 min |
| 2 000 V AC, 1 min |
| 750 V AC, 1 min |
| 500 V AC, 1 min |
| 500 V AC, 1 min |
| |
| 500 V AC, 1 min |
| 2 000 V AC, 1 min |
| 500 V AC, 1 min |
| 2 000 V AC, 1 min |
| 750 V AC, 1 min |
| 500 V AC, 1 min |
| 500 V AC, 1 min |
| 500 V AC, 1 min |
Effect on operation | |
Effect of power supply fluctuation conditions | |
| Reading change: ± (0.2 % + 1 digit) or less |
| Reading change: ± (0.2 % + 1 digit) or less |
Effect of input signal resistance | |
| 0.5 μV/Ω + 1 digit or less |
| Fluctuation for resistance value equivalent to 0.1 % of the input resistance: ± (0.2 % + 1 digit) or lower. |
| Reading change: ± (0.2 % + 1 digit) or lower |
Effect of ambient temperature | Reading change: ± (0.3 % + 1 digit)/10 °C (50 °F) or lower |
Effect of mounting position | For the backward 30° slant Reading change: ± (0.2 % + 1 digit) or lower |
Effect of vibration | When sine wave of 10 … 60 Hz with the acceleration of 0.2 m/s² is applied in each direction for 2 hours. Reading change: ± (0.2 % + 1 digit) or lower |
Normal mode noise | ≥ 20 dB at 50, 60 Hz ± 0.1 Hz |
Common mode noise | ≥ 120 dB at 50, 60 Hz ± 0.1 Hz |
Additional function (option) – SITRANS R230 | |
Alarm relay output/DI | A card with 10-point relay output and 5-point DI input can be mounted. Cannot be mounted if the number of input points is 18. |
External terminal | M3 screw terminal |
Alarm relay output | Contact output (SPST:10 points), Individual channel or common output (OR output) allowed. |
| Contact rating: |
| Contact rating: |
DI input | No-voltage contact input (5 points) The following control is allowed by contact input.
|
| 200 ms or longer |
| 200 ms or longer |
Communication, Alarm output with open-collector and DI | A card with communication with RS485. Modbus protocol, 18-points open-collector output and 5-points DI input is available. |
External terminal |
|
Communication | |
| Modbus (RTU) |
| 2 wire method Half duplex bit serial, start-stop sync type |
| 8 bits |
| Odd/even/none |
| 1 bit |
| 9 600, 19 200 bps |
| Multi-drop/up to 32 recorders connectable including master station |
| Total extension 500 (19 685) or less |
| Isolated type Manufacture: OMRON Corporation Model: K3SC-10 |
Alarm output | Open-collector transistor output (18 points) |
| 30 V DC, 100 mA (resistive load) |
DI input | No-voltage contact input (5 points) The following control is allowed by contact input.
|
| 200 ms or longer |
| 200 ms or longer |
Additional function (option) – SITRANS R260 | |
Alarm relay output/DI | Up to 2 cards with 10-point relay output can be mounted. (Maximum 20 points) |
External terminal | M3 screw terminal |
Alarm relay output | 1a contact output (10 points/card), Individual channel or common output (OR output) allowed. |
| Contact rating: |
Alarm open collector output | Card having 16 alarm points (open collector output) can be mounted |
External terminal | M3 screw terminal |
Alarm output | Open-collector transistor output (16 points) |
| 30 V DC/0.1 A (resistive load) |
DI input | Card having 16 DI input can be mounted |
External terminal | M3 screw terminal |
DI input | No-voltage contact input (16 points) Contact input allows following controls.
|
| 400 ms or longer |
| 400 ms or longer |
Ethernet (Option) | The following can be performed through the Ethernet function. |
HTTP server (Internet Explorer 6 is available) | Note: Neither Netscape nor Mozilla Firefox are available. |
| Digitally displays the measurement of each channel of the recorder and alarm occurrence status. |
| Displays event summary including alarm ON/OFF and issuance of messages. |
| Displays memory use conditions and information on the main unit such as the battery end warning. |
| Digitally displays the integrated value of each channel of the recorder. |
FTP server (Internet Explorer 6, is available) | Note: Neither Netscape nor Mozilla Firefox are available. |
| Record files stored in CompactFlash Card (CF) can be downloaded from the browser. |
| Record files stored in CF can be deleted from the browser. |
| Authenticates access authority to FTP server. |
SMTP (e-mail client) | Transmits e-mails to specified address under the following conditions.
|
Modbus TC/IP | |
| Settings can be read through Modbus TCP/IP communication. |
| Settings can be written through Modbus TCP/IP communication. |
Support software | The following software is provided as standard.
|
Parameter loader software | |
Major function | Performs various parameter setting/change of the main unit |
O/S | Windows 2000/XP |
Required memory | 64 Mbyte or larger |
Disk drive | Windows 2000/XP-capable CD-ROM drive |
Hard disk capacity | Free capacity of 30 Mbyte or larger required |
Printer | Windows 2000/XP-capable printer and printer driver Note: PC loader communication cable is separately required. |
Data viewer software | |
Major function | Regenerates the past trend record on the PC from the data in the CompactFlash Card. Provided with historical trend display and event display functions. |
O/S | Windows 2000/XP |
Required memory | 64 Mbyte or larger |
Disk drive | Windows 2000/XP-capable CD-ROM drive |
Hard disk capacity | Free capacity of 30 Mbyte or larger required |
Printer | Windows 2000/XP-capable printer and printer driver |
SITRANS R230
Screen | Number of channel on one screen | Items | ||||
|---|---|---|---|---|---|---|
Tag 1 | Tag 2 | Unit | Channel number | |||
Trend | 4 or less | + | + | + | + | |
5 or more | x | x | x | |||
Bar graph | 4 or less | + | + | + | + | |
5 or more | x | x | x | |||
Analog meter | 4 or less | All items are displayed | ||||
More than 5 | No. 1 … 4 | v | v | v | ||
Others | x | x | x | |||
Digital | 4 or less | All items are displayed | ||||
5 or more | v | v | v | |||
x: Only 1 item can be displayed
+: Only 2 items can be displayed
v: 3 items can be displayed. Only Tag 2 can’t be displayed
SITRANS R260
Screen | Channels per screen | Items | |||
|---|---|---|---|---|---|
Tag 1 | Tag 2 | Unit | Channel number | ||
Trend Bar graph | 4 or less | All items are displayed | |||
5, 6 | o | - | o | o | |
7 or more | x | - | x | x | |
Analog meter | 6 or less | All items are displayed | |||
7 or more | o | - | o | O | |
Digital | All items are displayed | ||||
o: Displayed
x: 1 item only can be displayed
-: Nothing can be displayed
Function | Description |
Record range voluntary setting | Recording range can be set by channel. |
Input type setting | Input can be set by channel (key operation on the front face). Set the same input type for every 2 channels. See “Selecting input type”. |
Skip function | Skips arbitrary channel display/recording. |
Trend display | |
| Time is displayed at the top of the trend display screen. |
| On occurrence of an alarm and the restoration, alarm is displayed in the alarm display field. |
Tag name display | By channel, Maximum of 8 characters. |
Screen name display | Displays the screen name (maximum of 16 characters). |
Unit creation | Industrial units can be arbitrarily created, Maximum of 7 digits, 12 types. |
Scaling function | Arbitrary scaling is allowed in the case of DC voltage input. Decimal point position can also be arbitrarily set in the range from -32767 … 32767. |
PV shift | Shift the zero point and slant of the reading. |
Input filter | Prevents sudden fluctuation of input for each channel (primary delay filter). Time constant: 0 … 900 s. |
Burnout function | Displays the break of thermocouple/RTD input by scaling out to 100 % side. |
Historical trend display | Regenerates and displays the data stored in the CompactFlash Card by scrolling the screen or jump to time when you entered. |
The recording can be made for the period of time listed in the tables shown below under the following conditions:
SITRANS R230
CompactFlash Card size | 16 Mbyte | |||||
|---|---|---|---|---|---|---|
Display refreshment cycle | 1 s | 10 s | 30 s | 1 min | 10 min | 30 min |
Recordable capacity (about) | 28 hours | 11 days | 35 days | 70 days | 2 years | 5.7 years |
CompactFlash Card size | 64 Mbyte | |||||
Display refreshment cycle | 1 s | 10 s | 30 s | 1 min | 10 min | |
Recordable capacity (about) | 112 hours | 46 days | 140 days | 280 days | 7.7 years | |
CompactFlash Card size | 256 Mbyte | |||||
Display refreshment cycle | 1 s | 10 s | 30 s | 1 min | ||
Recordable capacity (about) | 18 days | 187 days | 1.5 years | 3 years | ||
When CompactFlash Card is not used
SITRANS R260
When the number of input points goes on increasing, the period becomes as follows:
CompactFlash Card size | 64 Mbyte | |||||
|---|---|---|---|---|---|---|
Display refreshment cycle | 1 s | 10 s | 30 s | 1 min | 10 min | |
Recordable capacity (about) | 112 hours | 46 days | 140 days | 280 days | 7.7 years | |
CompactFlash Card size | 256 Mbyte | |||||
Display refreshment cycle | 1 s | 10 s | 30 s | 1 min | ||
Recordable capacity (about) | 18 days | 187 days | 1.5 years | 3 years | ||
When CompactFlash Card is not used
Basically, the input type can be every 2 channels.
The following input types are available.
Input category | Details |
Thermocouple, 50 mV | K, E, J, T, R, S, B, N, W, L, U, and PN thermocouples, 50 mV |
RTD | Pt100, JPt100, Ni100, Pt50, Cu50 |
500 mV | 500 mV |
5 V | 1 ... 5 V, 0 ... 5 V |
Note
Input type | Input category | Description | |
|---|---|---|---|
Channel 1 | K thermocouple | Thermocouple, 50 mV | The type of thermocouple can be arbitrarily selected for each channel. |
Channel 2 | T thermocouple | ||
Channel 3 | 1 ... 5 V | 5 V | |
Channel 4 | 0 ... 5 V | ||
Channel 5 | Pt100 | RTD | The type of RTD can be arbitrarily selected for each channel. |
Channel 6 | JPt100 | ||
Channel 7 | 500 mV | 500 mV | |
Channel 8 | 500 mV | ||
Channel 9 | J thermocouple | Thermocouple, 50 mV | Input type can be arbitrarily selected for channel 9. |
Channel 10 | K thermocouple | Thermocouple, 50 mV | The input type of the thermocouple and 50 mV is the same. |
Channel 11 | 50 mV | ||
Channel 12 | Skip | 5 V | Skip can arbitrarily selected irrespective of the input type. |
Channel 13 | 1 ... 5 V | ||
Channel 14 | Pt100 | RTD | |
Channel 15 | Skip | ||
Channel 16 | Skip | 500 mV | |
Channel 17 | 500 mV | ||
Channel 18 | 50 mV | Thermocouple, 50 mV | Input type can be arbitrarily selected for channel 18. |
Measured data is periodically stored in CompactFlash Card. Storage capacity of up to 256 Mbyte allows display files for approximately one and a half years to be recorded continuously at the display refresh cycle of 30 seconds (in the case of ASCII data format, 9 channels).
Data stored in CompactFlash Card can be displayed in succession by scrolling the screen.
Depending on the object of measurement, the most suitable display format can be selected from a variety of formats including bar graph display, trend display, digital display, etc.
Parameter loader software that enables easy display and change of set data and data viewer software that regenerates the data stored in CompactFlash Card are supplied as standard.
12 types of thermocouples, 5 types of RTDs and DC voltage/current input can be recorded up to 18 points.
12 types of thermocouples, 5 types of RTDs and DC voltage/current input can be recorded up to 36 points.
With RS485 (Modbus protocol) interface.
FTP, Web server, e-mail and Modbus-TCP are available.
Period of non-operation exceeds the setting value of parameter, “LCD lights-out time”, recorder turns off the backlight. Setting range of this parameter is 0 to 60 minutes.
Panel mounting
In the case of 9-point input
All dimensions in mm (inch)
In the case of 18-point input
All dimensions in mm (inch)
Panel cutout
All dimensions in mm (inch)
Panel mounting
In the case of 9-point input
All dimensions in mm (inch)
In the case of 18-point input
All dimensions in mm (inch)
In the case of 27-point input
All dimensions in mm (inch)
In the case of 36-point input
All dimensions in mm (inch)
Panel cutout
All dimensions in mm (inch)
SITRANS R230
In the case of 9-point input
In the case of 18-point input
SITRANS R260
In the case of 9-point, 18-point, 27-point and 36-point input
Additional information is available in the Internet under:
| Код | Заказной номер | Описание | Вес (кг) | Заказать |
|---|---|---|---|---|
| 119013 | 7ND5420-.....-.... | sitrans r230 display recorder, 5 inch screen | 2.2 | Заказать |
| 119014 | 7ND5460-.....-.... | sitrans r260 display recorder, 12 inch screen | 5 | Заказать |
| 119015 | 7ND5801-7AA | 10 ohm external shunt resistor (required for dc current input) | 0.01 | Заказать |
| 72472 | 7ND5801-7AB | pc card adaptor for compact flash card | 0.3 | Заказать |
| 119016 | 7ND5801-7AC | termination resistor for communication | 0.01 | Заказать |
| 119017 | 7ND5801-7AK | d-sublight type 25 pins connector with male terminal output, which does not include cable (only sitrans r230) | 0.05 | Заказать |
