Temperature module TM производства Siemens

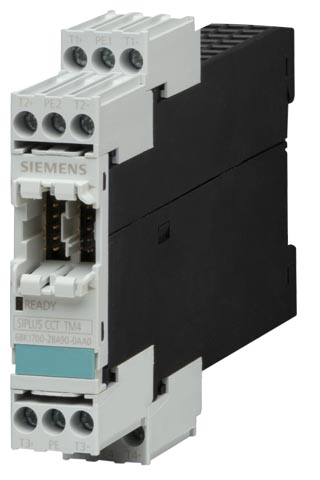

Temperature module TM

Temperature modules process analog temperature values supplied by the temperature sensors of the plant.

  • Up to four analog sensor measuring circuits in 2-wire technology or two analog sensor measuring circuits in 4-wire technology
  • Up to four temperature modules per basic unit for measuring up to 16 analog temperature values
  • The compensation method for measurements with thermocouples can be set to one of the following:
    • No compensation
    • Internal compensation
    • External compensation
    • Compensation via the higher-level automation system
  • The temperature values have a resolution of one decimal place
  • Automatic calibration on powering up assures high measuring accuracy
  • Different sensor types are supported for use in solid, liquid, or gaseous media: Pt100; Pt1000; TC Type J, K, L

Enclosure

Mounting

Snap-mounting on a TH 35 DIN rail compliant with IEC 60715 or screw-mounted with additional push-in lugs

Display

"Ready" LED:

  • Continuous light: "Ready"
  • Flashing light: "No connection to the basic unit"

Connectors for temperature sensors

Connections for four temperature sensors with a shield connection

Interfaces

Number

2

Connection options

The TM temperature module has interfaces for the following system modules:

  • Basic device
  • Expansion modules (digital module DM, current measuring module IM, current/voltage measuring module UM, decoupling module DCM)

Typical current consumption from system interface

20 mA

Sensor circuit

Connection type

2-wire or 4-wire connection

Number of analog inputs

  • 2-wire connection: 4
  • 4-wire connection: 2

Maximum electric strength

15 V

Conversion time for 4 channels

< 600 ms

Measuring principle

Integrating

Resolution of the temperature value



Noise suppression

50 Hz / 60 Hz

Typical sensor circuit

  • Pt100/Pt1000: 210 μA

Wire-break detection

Yes

Measuring range

  • Pt100 / Pt1000: 0 … +400 °C
  • TC type J, K, L: 0 … +400 °C

Measuring accuracy at an ambient temperature of 20°C

  • Pt100: Typ. ± 1 °C, max. ± 1.3 °C
  • Pt1000: max. ± 1 °C
  • TC type J, K, L: max. ± 1 °C

Deviation at an ambient temperature of 20 °C as a percentage of the measuring range

0.05% per °C

Offset due to temperature drift (typical)

< 0.1 °C/°C change in ambient temperature

Measured value deviation due to temperature drift (typical)

< 11.5 ppm/°C change in ambient temperature

Isolation between channels

Functional isolation, max. voltage difference ±1 V

Isolation from SIMOConnect

Electrical isolation, isolating voltage 500 V DC

Connections

Tightening torque

Torque:

0.8 … 1.2 Nm (7 … 10.3 lb.in)

Conductor cross-sections

  • Single-core:
  • 2 x (0.5 … 2.5 mm2)
  • 1 x (0.5 … 4 mm2)
  • 2 x AWG 20 ... 14
  • 1 x AWG 20 ... 12
  • Finely stranded with end sleeve:
  • 2 x (0.5 ... 1.5 mm2)
  • 1 x (0.5 ... 2.5 mm2)
  • 2 x AWG 20 ... 16
  • 1 x AWG 20 ... 14

  • Описание : temperature detection модуль for heating control system
  • Вес (кг) : 0.14
Код Заказной номер Заказать
110032 6BK1700-4BA60-0AA0 Заказать
;
