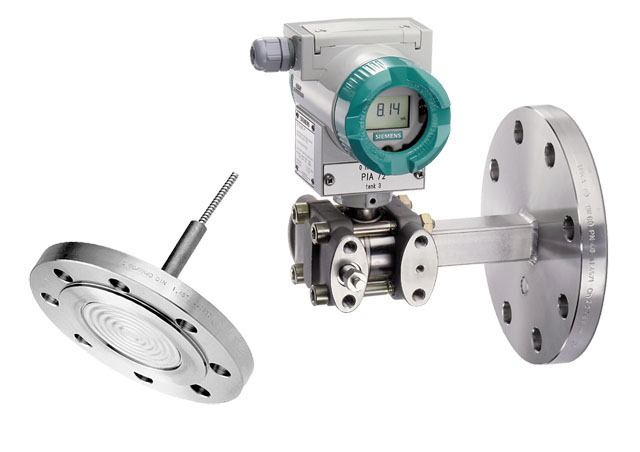

Direct mounting and with capillaries производства Siemens

Diaphragm seals of flange design for pressure transmitters for differential pressure, fixed connection and with flexible capillary

Nominal diameter

Nominal pressure

• DN 80

PN 40

• DN 100

PN 16, PN 40

• 3 inch

Class 150, class 300

• 4 inch

Class 150, class 300

Sealing face

• For stainless steel, mat. no. 1.4404/316L

To EN 1092‑1, form B1 or

ASME B16.5 RF 125 … 250 AA

• For the other materials

To EN 1092‑1, form B2 or

ASME B16.5 RFSF

Materials

• Main body

Stainless steel, Mat. No. 1.4404/316L

• Wetted parts materials

Stainless steel, Mat. No. 1.4404/316L

• No coating

• PTFE coating (for low-pressue on request)

• ECTFE coating (for low-pressue on request)

• PFA coating (for low-pressue on request)

Monel 400, mat. no. 2.4360

Hastelloy C276, mat. no. 2.4819

Hastelloy C4, mat. no. 2.4610

Tantalum

• Capillary

Stainless steel 1.4571/316Ti

• Sheath

Spiral hose made of stainless steel, mat. no. 1.4301/316

Sealing material in the process flanges

• For pressure transmitters, absolute pressure transmitters and low-pressure applications

copper

• For other applications

Viton

Maximum pressure

See above and the technical data of the pressure transmitter

Tube length

Without tube

50 mm (1.97 inch)

100 mm (3,94 inch)

150 mm (5.91 inch)

200 mm (7.87 inch)

Capillary

• Length

Max. 10 m (32.8 ft), longer lengths on request

• Internal diameter

2 mm (0.079 inch)

• Minimum bending radius

150 mm (5.9 inch)

Filling liquid

Silicone oil M5

Silicone oil M50

High-temperature oil

Halocarbon oil (for measuring O₂)

Food oil (FDA-listed)

Glycerin/water (not suitable for use in low-pressure range)

Max. recommended process temperature

170 °C (338 °F)

Permissible ambient temperature

Dependent on the pressure transmitter and the filling liquid of the remote seal

More information can be found in the technical specifications of the pressure transmitters and in the section "Technical data of filling liquid" in the introduction to the remote seals

Weight

Approx. 4 kg (8.82 lb)

Certificates and approvals

Classification according to pressure equipment directive (PED 97/23/EC)

For gases of fluid group 1 and liquids of fluid group 1; complies with requirements of article 3, paragraph 3 (sound engineering practice)

mm (inch)

mm (inch)

mm (inch)

mm (inch)

mm (inch)

mm (inch)

mm (inch)

mm (inch)

DN 80

PN 40

24

200

18

138

76

89

2

160

8

DN 100

PN 16

20

200

18

158

94

89

2

180

8

PN 40

24

235

22

162

94

89

2

190

8

lb/sq.in.

mm (inch)

mm (inch)

mm (inch)

mm (inch)

mm (inch)

mm (inch)

mm (inch)

mm (inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

3 inch

150

24,3

190

20

127

76

89

2

152,5

4

(0.96)

(7.48)

(0.79)

(5)

(3)

(3.50)

(0.08)

(6)

300

29

210

22

127

76

89

2

168,5

8

(1.14)

(8.27)

(0.87)

(5)

(3)

(3.50)

(0.08)

(6.63)

4 inch

150

24,3

230

20

158

94

89

2

190,5

4

(0.96)

(9.06)

(0.79)

(6.22)

(3.69)

(3.50)

(0.08)

(7)

300

32,2

255

22

158

94

89

2

200

8

(1.26)

(10.04)

(0.87)

(6.22)

(3.69)

(3.50)

(0.08)

(7.87)
